Granular packaging machine for granules

Product model：CY300K/CY600K/CY900K

　　Lanes number：2-16lanes

　　Capacity：30--50 / Max.30-50cycle/min/lane

　　Bag size：L：50-180mm W：25-110mm

　　Film width&thickness：Max.300-900mm，0.07--0.1mm

　　Measuring Method：1、Vomuletric cup;2、weigher

　　Sealing type：3 side sealing

　　Cutting type：1、Straight cutting;2、Zig zag cutting 3、Round cutting;4、Die-cut

　　Power supply：1N+PE/50HZ/AC220V/380V/3.5-7.5kw

　　Air consumption：0.8 MPA 0.8m3/min

　　Weight：600kg

　　The three sided sealing multi row packaging machine for herbal tea granules can automatically complete bag making, measurement, cutting, sealing, and cutting. It is compatible with rounded corner bags, irregular bags, flat bags, and serrated bags. This machine is suitable for packaging herbal tea granules, enzyme granules, instant coffee, juice powder, white sugar, oats, and other materials.

We can help you find the goods you want by phone

Consult immediately 186 7694 7539
Machine video introduction

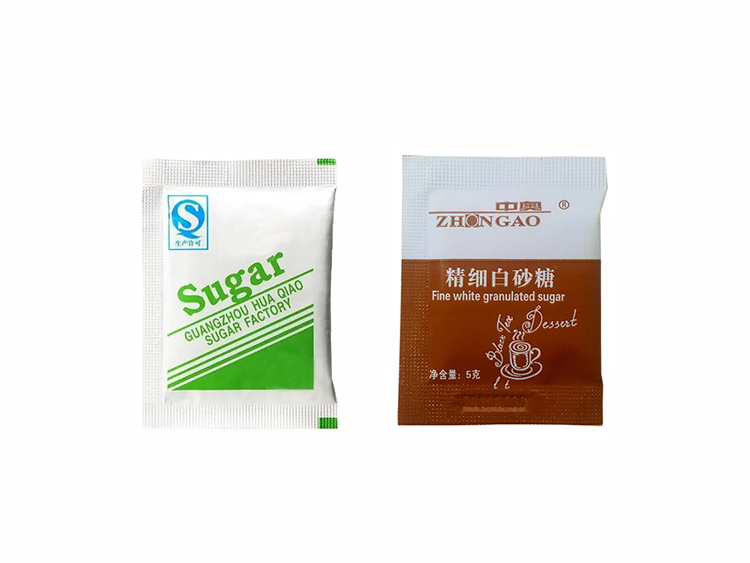

Packaging sample bag
Machine parameters
    Model CY300K CY600K CY900K
    Lanes number 2-4 lanes 3-10 lanes 4-16 lanes
Capacity 30--50 / Max.30-50cycle/min/lane
Bag size L：50-180mm  W：25-75mm L：50-180mm  W：25-100mm L：50-180mm  W：25-110mm
Film width&thickness Max.300mm，0.07--0.1mm Max.600mm，0.07--0.1mm Max.900mm，0.07--0.1mm
Measuring Method 1、Vomuletric cup；2、weigher
Sealing type 3 side sealing 3 side sealing 3 side sealing
Cutting type 1、Straight cutting；2、Zig zag cutting；3、Round cutting；4、Die-cut
Power supply 1N+PE/50HZ/AC220V/380V/3.5kw 1N+PE/50HZ/AC220V/380V/5.5kw 1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min
Dimension 1385*918*2005mm 1685*1300*2005mm 1700*1600*2500mm
Weight 400kg 600kg 950kg
Machine details

挂膜装置

袋子成型

袋子成型 2

横封和纵封装

量杯计量系统

量杯式计量系

料桶

料桶1
