Sugar stick packaging machine

Product model：CY300BK/CY600BK/CY900BK

　　Lanes number：2-18 lanes

　　Capacity：30--50 / Max.30-50cycle/min/lane

　　Bag size：L：50-180mm W：17-105mm

　　Film width&thickness：Max.300-900mm,0.07--0.1mm

　　Measuring Method：1、Vomuletric cup；2、weigher

　　Sealing type：Back sealing/stick bag

　　Cutting type：1、Straight cutting；2、Zig zag cutting 3、Round cutting；4、Die-cut

　　Power supply：1N+PE/50HZ/AC220V/380V/3.5kw

　　Air consumption：0.8 MPA 0.8m3/min

　　Dimension：1385*918*2005mm

　　Weight：400-950kg

　　The sugar strip packaging machine adopts the form of paper film bags for packaging, suitable for small bags of sugar granules such as white sugar, coffee companions, and soft white sugar. The bag type is back sealed, and the style can also be customized according to customer needs.

We can help you find the goods you want by phone

Consult immediately 18676947539
Video

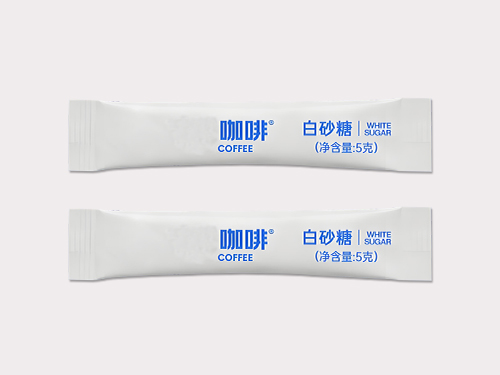

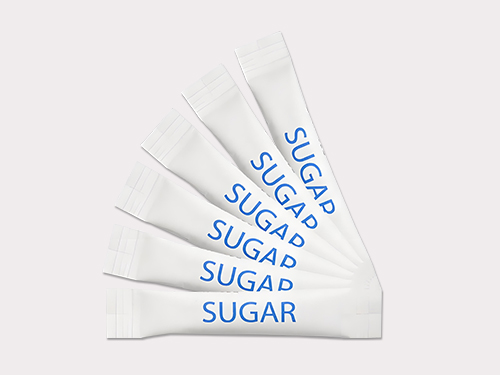

Packaging sample bag
Parameters
Model CY300BK CY600BK CY900BK
Lanes number 2-4 lanes 3-10 lanes 4-16 lane
Capacity 30--50 / Max.30-50cycle/min/lane
Bag size L：50-180mm  W：17-70mm L：50-180mm  W：17-95mm L：50-180mm  W：17-105mm
Film width&thickness Max.300mm,0.07--0.1mm Max.600mm,0.07--0.1mm Max.900mm,0.07--0.1mm
Measuring Method 1、Vomuletric cup；2、weigher
Sealing type Back sealing/stick bag Back sealing/stick bag Back sealing/stick bag
Cutting type 1、Straight cutting；2、Zig zag cutting 3、Round cutting；4、Die-cut
Power supply 1N+PE/50HZ/AC220V/380V/3.5kw 1N+PE/50HZ/AC220V/380V/5.5kw 1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min
Dimension 1900*1440*3130mm 1860*1750*3300mm 1860*2050*3375mm
Weight 900kg 1100kg 1400kg
