Multi row back sealed powder packaging

Product model：CY300BF/CY600BF/CY900BF

The automatic multi row back sealing powder packaging machine is applicable to the automatic packaging of powder powder or fine powder in pharmaceutical, food, daily chemical, pesticide, hardware products and other industrial products
Such as: solid beverage, meal substitute powder, nutritional powder, flour, starch, food additives, milk powder, bean powder, protein powder, Chinese medicine powder, facial mask powder, pearl powder, coffee powder, cocoa powder, health tea powder, glucose powder, soda powder, papaya root powder, etc

We can help you find the goods you want by phone

Consult immediately 186 7694 7539
Machine parameters
    Model CY300BF CY600BF CY900BF
    Lanes number 2-4 lanes 3-10 lanes 4-16 lane
Capacity  20--40 /  Max.20-40cycle/min/lane
Bag size L 50-180mm  W:20-70mm L::50-180mm  W:20-95mm L::50-180mm  W:20-105mm
Film width&thickness Max.300mm,0.07--0.1mm Max.600mm,0.07--0.1mm Max.900mm,0.07--0.1mm
Measuring Method 1.long auger;2.short auger;3.short auger with cup
Sealing type Back sealing/stick bag Back sealing/stick bag Back sealing/stick bag
Cutting type 1. Straight cutting;2. Zig zag cutting 3. Round cutting;4. Die-cut
Power supply 1N+PE/50HZ/AC220V/380V/3.5kw 1N+PE/50HZ/AC220V/380V/5.5kw 1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min
Dimension 1385*918*2005mm 1685*1300*2005mm 1700*1600*2500mm
Weight 400kg 600kg 950kg

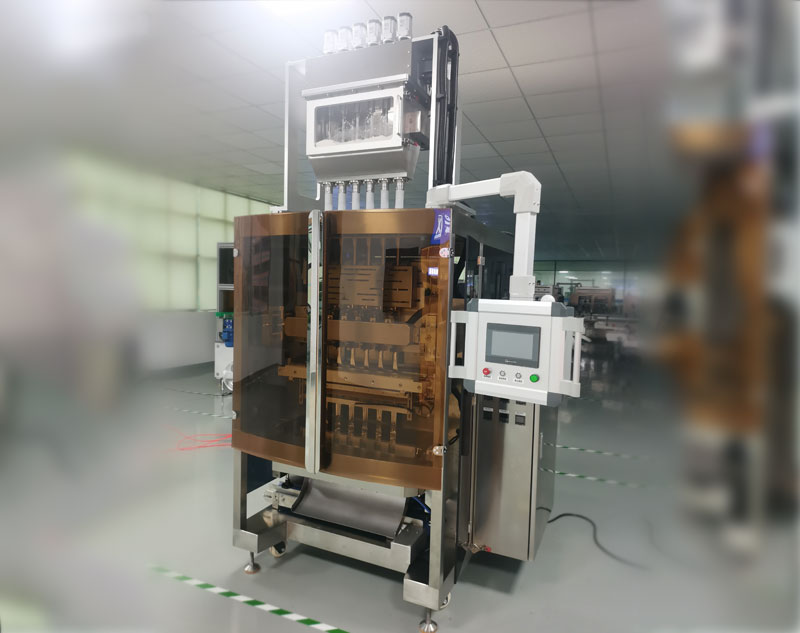

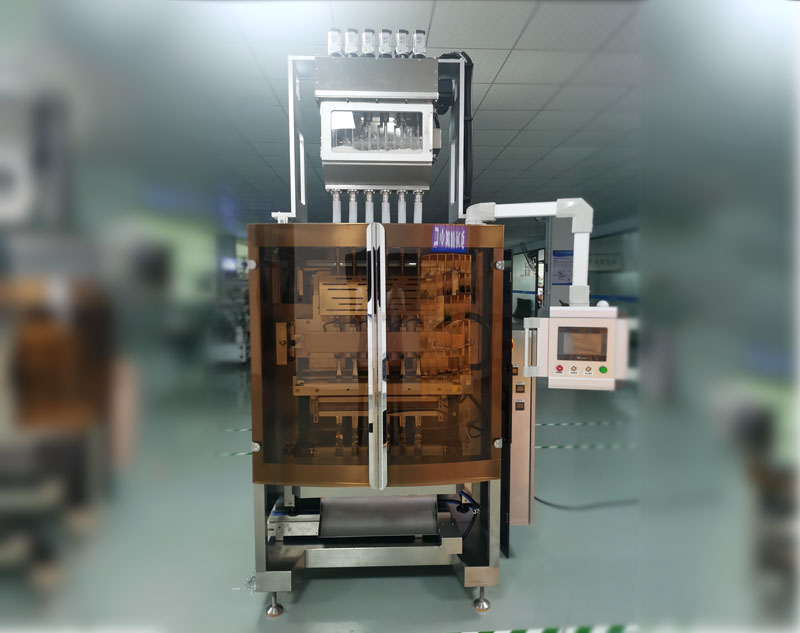

Machine details
Machine video introduction
Effect of packaging sample bag
