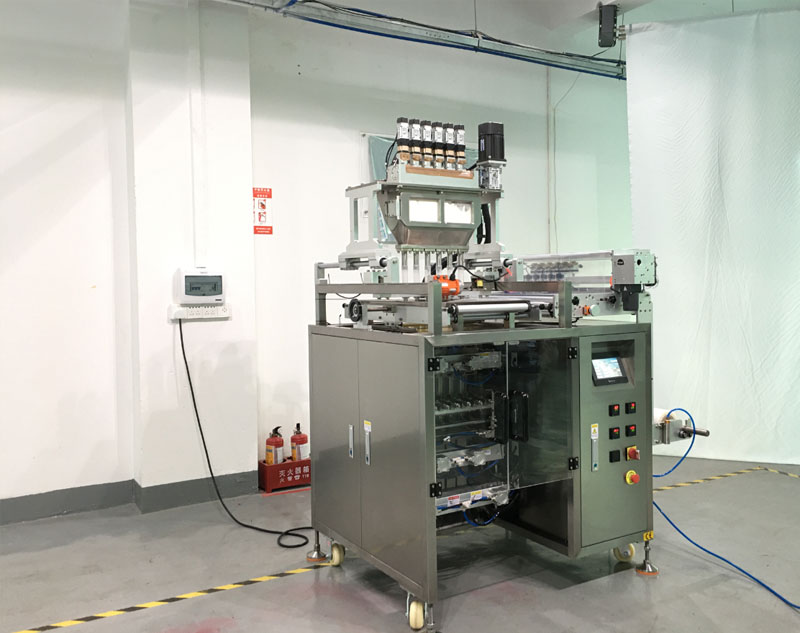

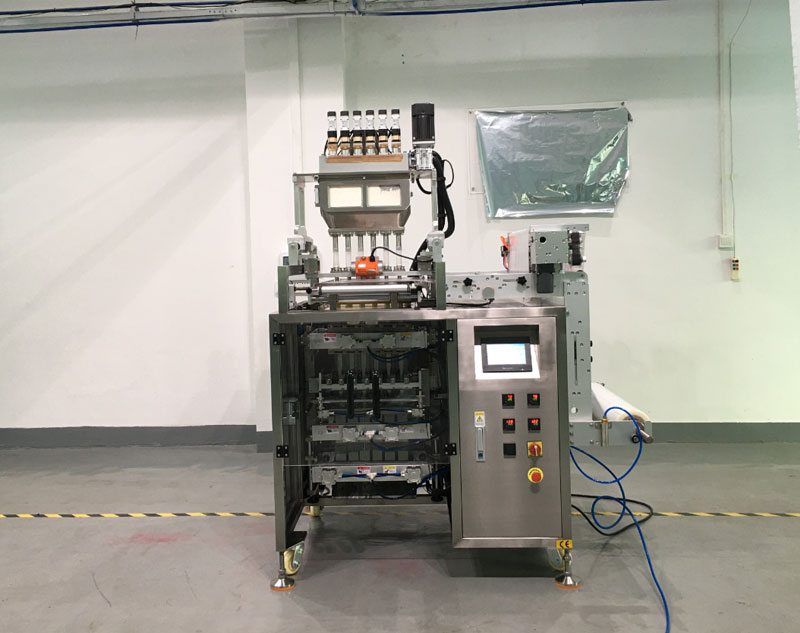

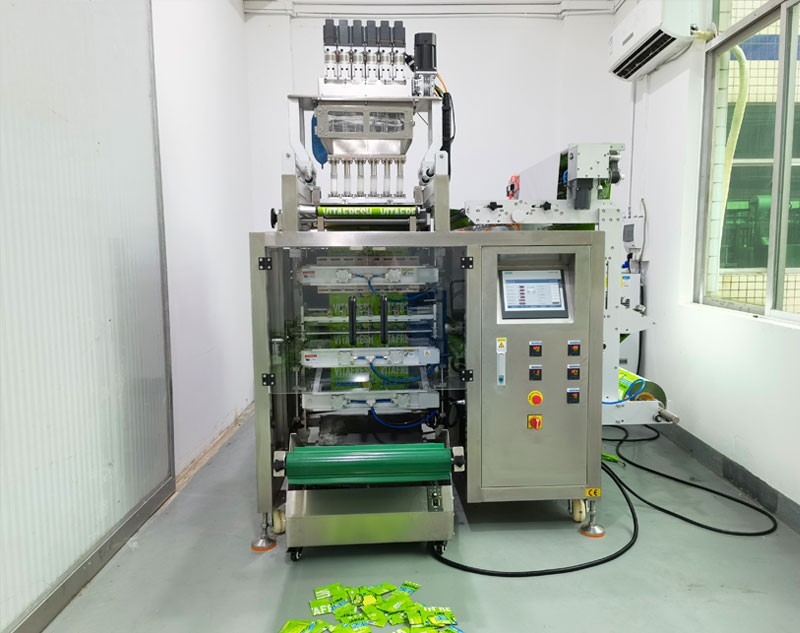

Multi row four side sealing powder packaging machine

Product model：CY500F/CY700F/CY980F/CY1200F

Full automatic multi row four side sealing powder packaging machine is applicable to the full automatic packaging of powder or fine particles in pharmaceutical, food, daily chemical, pesticide, hardware products and other industrial products
Such as: food additives, milk powder, bean powder, protein powder, Chinese medicine powder, facial mask powder, pearl powder, coffee powder, pesticide powder, cockroach medicine, health tea powder, glucose powder, soda powder, etc

We can help you find the goods you want by phone

Consult immediately 186 7694 7539
Machine parameters
    Model CY500F CY700F CY980F CY1200F
Lanes number 2-4 lanes 3-6 lanes 4-8 lane 5-10 lane
Capacity  25--40 /  Max.25-40cycle/min/lane
Bag size L 45-160mm  W:50-125mm L 45-160mm  W:50-125mm L 45-160mm  W:50-125mm L 45-160mm  W:50-125mm
Film width&thickness Max.500mm,0.07--0.1mm Max.700mm,0.07--0.1mm Max.980mm,0.07--0.1mm Max.1200mm,0.07--0.1mm
Measuring Method 1.杆short auger;2.short auger with cup
Sealing type  4 sides sealing  4 sides sealing  4 sides sealingg  4 sides sealing
Cutting type 1. Straight cutting;2. Zig zag cutting ;3 Continuous Cutting
Power supply 1N+PE/50HZ/AC220V/380V/2.8kw 1N+PE/50HZ/AC220V/380V/4.1kw 1N+PE/50HZ/AC220V/380V/5.5kw 1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min
Dimension 950*1470*1750mm 1153*1654*1750mm 1415*1686*2130mm 2220*2210*2600mm
Weight 400kg 550kg 650kg 900kg
Machine details

Finished product transportation

Slitting system

Powder silo

Horizontal and vertical sealing system (1)

Horizontal and vertical sealing system (3)

Screw metering system

Screw metering system (1)

Machine side (1)

Machine side (2)

Machine side 1

Machine video introduction
Effect of packaging sample bag
