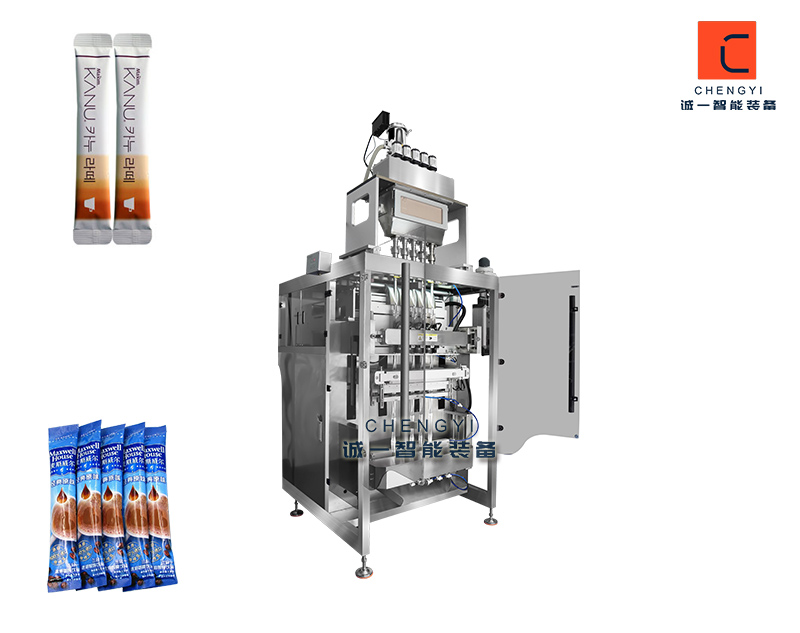

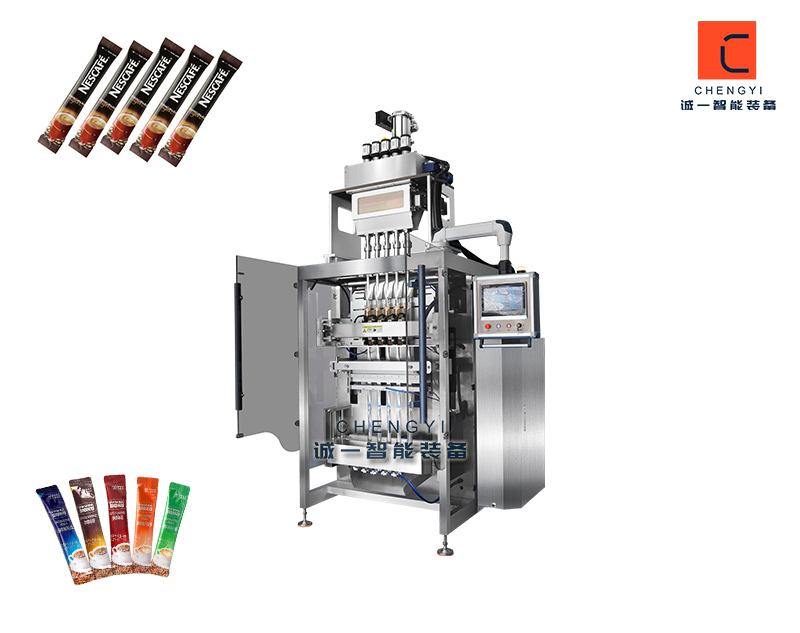

Coffee bar packaging machine

Product model：CY300BF/CY600BF/CY900BF

　　Lanes number：2-16 lanes

　　Bag size：L：50-180mm W：20-105mm

　　Film width&thickness：Max.300-900mm,0.07--0.1mm

　　Capacity：Max.20-40cycle/min/lane

　　Measuring Method：long auger、short auger、short auger with cup

　　Power supply：50HZ/AC220V/380V/3.5-7.5kw

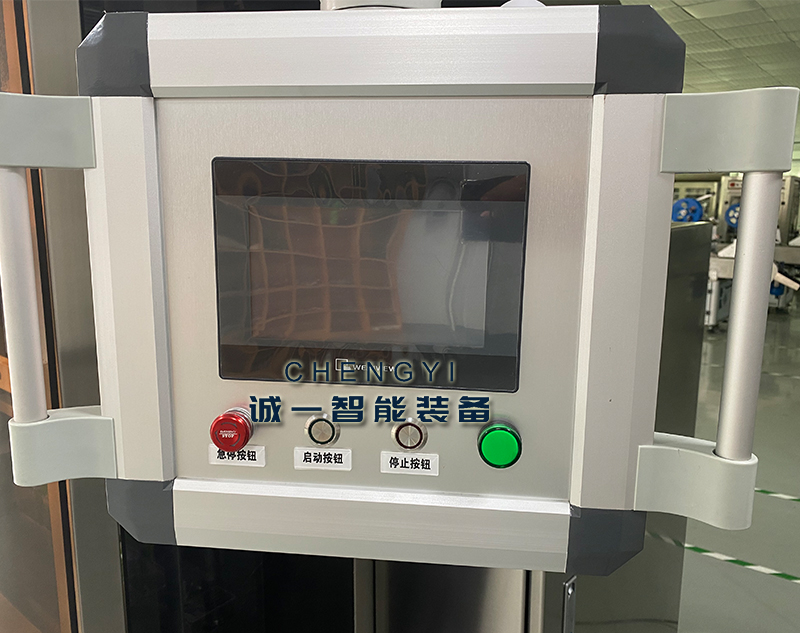

　　The coffee bar packaging machine is a multi column packaging machine for bar shaped coffee powder developed by our company. The machine uses a measuring cup to measure materials. It is a fully automatic coffee bar packaging machine operated by a PLC intelligent control system. The machine can automatically complete a series of tasks such as material transportation, measurement, weighing, bag making, filling, sealing, cutting, and printing dates.

We can help you find the goods you want by phone

Consult immediately 186 7694 7539
Machine Video
Packaging sample bag
咖啡包装机
2
3
4
5
6
7
8
9
10
Parameter
    Model CY300BF CY600BF CY900BF
    Lanes number 2-4 lanes 3-10 lanes 4-16 lane
Capacity 20--40 /Max.20-40cycle/min/lane
Bag size L：50-180mm  W：20-70mm L：50-180mm  W：20-95mm L：50-180mm  W：20-105mm
Film width&thickness Max.300mm,0.07--0.1mm Max.600mm,0.07--0.1mm Max.900mm,0.07--0.1mm
Measuring Method 1、long auger；2、short auger；3、short auger with cup
Sealing type Back sealing/stick bag Back sealing/stick bag Back sealing/stick bag
Cutting type 1、平口 Straight cutting；2、Zig zag cutting 3、Round cutting；4、Die-cut
Power supply 1N+PE/50HZ/AC220V/380V/3.5kw 1N+PE/50HZ/AC220V/380V/5.5kw 1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min
Dimension 1385*918*2005mm 1685*1300*2005mm 1700*1600*2500mm
Weight 400kg 600kg 950kg
Machine Details
