Multi row three side sealing powder packaging machine

Product model：CY300F/CY600F/CY900F

　　Lanes number：2-16lanes

　　Bag size：L：50-180mm W：25-110mm

　　Film width&thickness：Max.300-900mm，0.07--0.1mm

　　Capacity：Max.20-40cycle/min/lane

　　Sealing type：side sealing

　　Cutting type：Straight cutting、Zig zag cutting、Round cutting、Die-cut

　　Measuring Method：long auger、short auger、short auger with cup

　　Power supply：50HZ/AC220V/380V/3.5-7.5kw

　　The fully automatic multi column three side sealing powder packaging machine is suitable for the fully automatic packaging of powders or small particles in industries such as medicine, food, daily chemical, pesticide, hardware products, etc. For example: food additives, milk powder, bean powder, protein powder, Chinese medicine powder, facial mask powder, pearl powder, coffee powder, pesticide powder, cockroach medicine, health tea powder, glucose powder, soda powder, etc.

We can help you find the goods you want by phone

Consult immediately 186 7694 7539
Machine video introduction

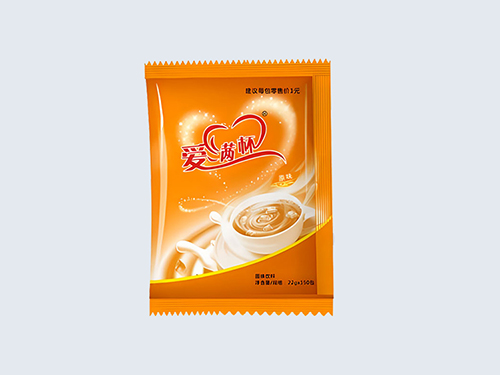

Effect of packaging sample bag
Machine parameters
     Model CY300F CY600F CY900F
    Lanes number 2-4 lanes 3-10 lanes 4-16 lane
Capacity 2--40 /Max.20-40cycle/min/lane
Bag size L 50-180mm  W:25-75mm L::50-180mm  W:25-100mm L::50-180mm  W:25-110mm
Film width&thickness Max.300mm,0.07--0.1mm Max.600mm,0.07--0.1mm Max.900mm,0.07--0.1mm
Measuring Method 1.long auger;2.short auger;3.short auger with cup
Sealing type 3 side sealing 3 side sealing 3 side sealing
Cutting type 1.Straight cutting;2.Zig zag cutting 3.Round cutting;4.Die-cut
Power supply 1N+PE/50HZ/AC220V/380V/3.5kw 1N+PE/50HZ/AC220V/380V/5.5kw 1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min
Dimension 1385*918*2005mm 1685*1300*2005mm 1700*1600*2500mm
Weight 400kg 600kg 950kg
Machine details

Electric box

Screw metering system

Screw metering system 1
