Product model：CY500F/CY700F/CY980F/CY1200F
Lanes number：2-10lanes
Capacity：Max.25-40cycle/min/lane
Bag size：L：45-160mm W：50-125mm
Film width&thickness：Max.500-1200mm,0.07--0.1mm
Measuring Method：1、short auger;2、short auger with cup
Sealing type：4 sides sealing
Cutting type：1、Straight cutting;2、Zig zag cutting;3、Continuous Cutting
Power supply：1N+PE/50HZ/AC220V/380V/2.8kw
The fully automatic multi column four sided sealing powder packaging machine is suitable for the fully automatic packaging of powders or small particles in industries such as medicine, food, daily chemicals, pesticides, and hardware products. For example: food additives, milk powder, bean powder, protein powder, Chinese medicine powder, facial mask powder, pearl powder, coffee powder, pesticide powder, cockroach medicine, health tea powder, glucose powder, soda powder, etc.
We can help you find the goods you want by phone
Machine video introduction

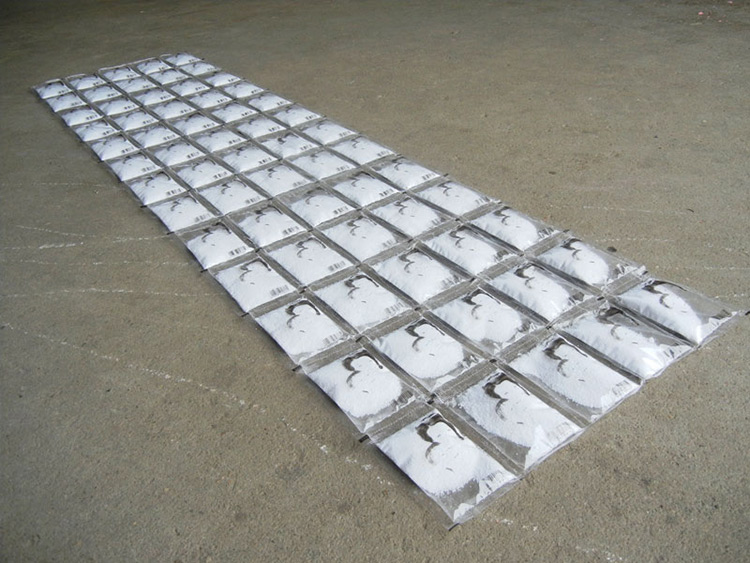

Effect of packaging sample bag
Machine parameters
| Model | CY500F | CY700F | CY980F | CY1200F |
| Lanes number | 2-4 lanes | 3-6 lanes | 4-8 lane | 5-10 lane |
| Capacity | Max.25-40cycle/min/lane | |||
| Bag size | L 45-160mm W:50-125mm | L 45-160mm W:50-125mm | L 45-160mm W:50-125mm | L 45-160mm W:50-125mm |
| Film width&thickness | Max.500mm,0.07--0.1mm | Max.700mm,0.07--0.1mm | Max.980mm,0.07--0.1mm | Max.1200mm,0.07--0.1mm |
| Measuring Method | 1.short auger;2.short auger with cup | |||
| Sealing type | 4 sides sealing | 4 sides sealing | 4 sides sealingg | 4 sides sealing |
| Cutting type | 1.Straight cutting;2.Zig zag cutting ;3.Continuous Cutting | |||
| Power supply | 1N+PE/50HZ/AC220V/380V/2.8kw | 1N+PE/50HZ/AC220V/380V/4.1kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw |
| Air consumption | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min |
| Dimension | 950*1470*1750mm | 1153*1654*1750mm | 1415*1686*2130mm | 2220*2210*2600mm |
| Weight | 400kg | 550kg | 650kg | 900kg |
Machine details

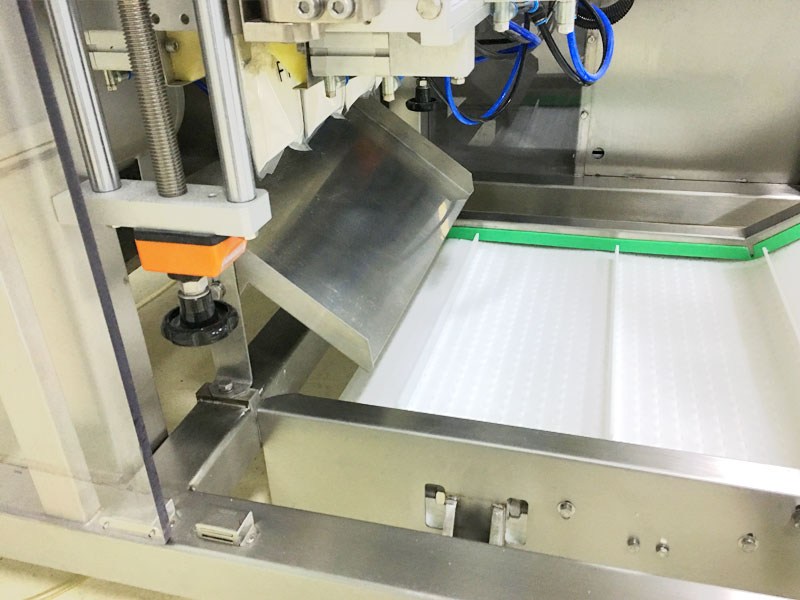

Finished product transportation

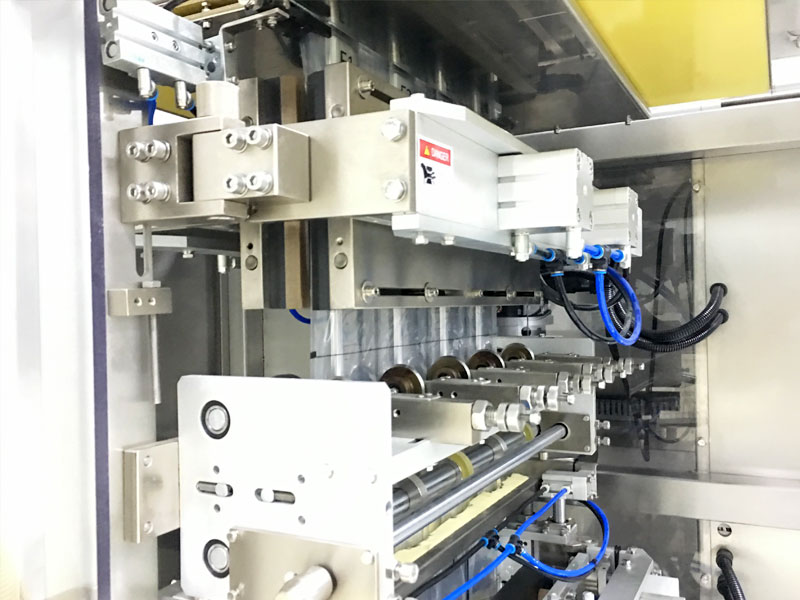

Slitting system

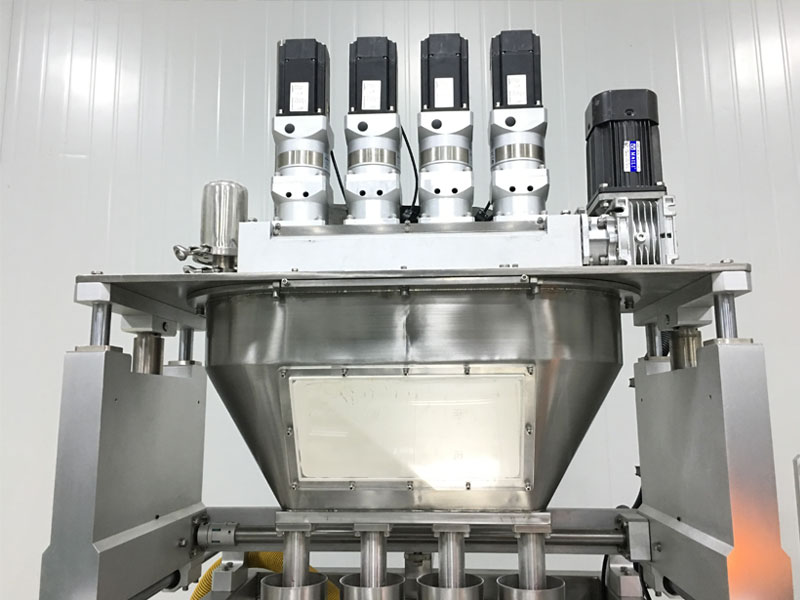

Powder silo

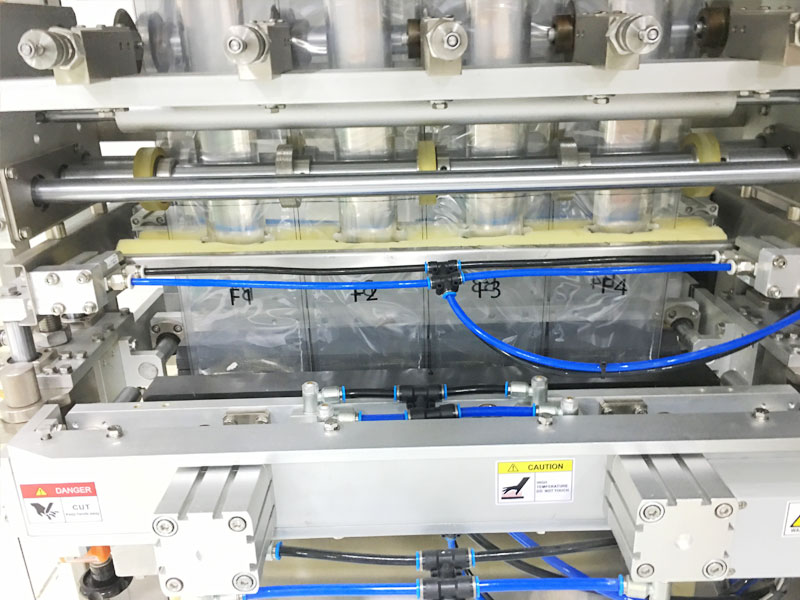

Horizontal and vertical sealing system (1)

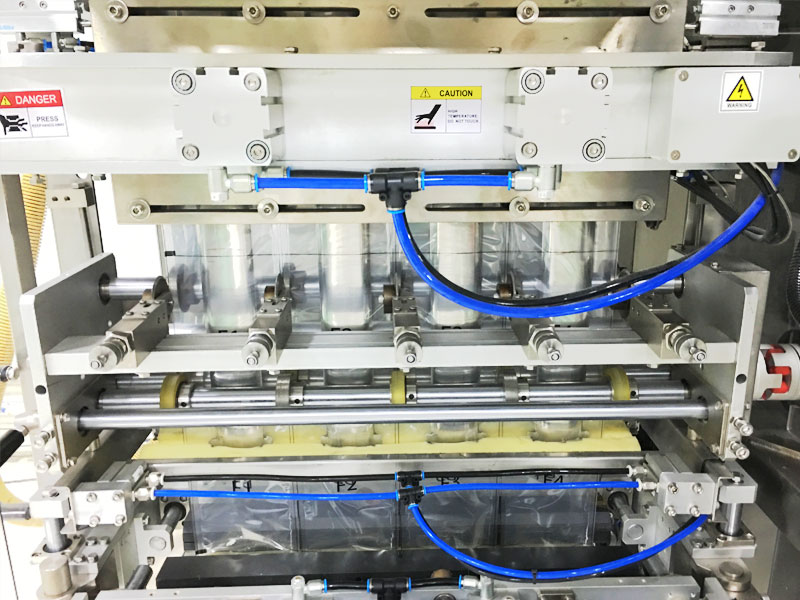

Horizontal and vertical sealing system (3)
Screw metering system
Screw metering system (1)

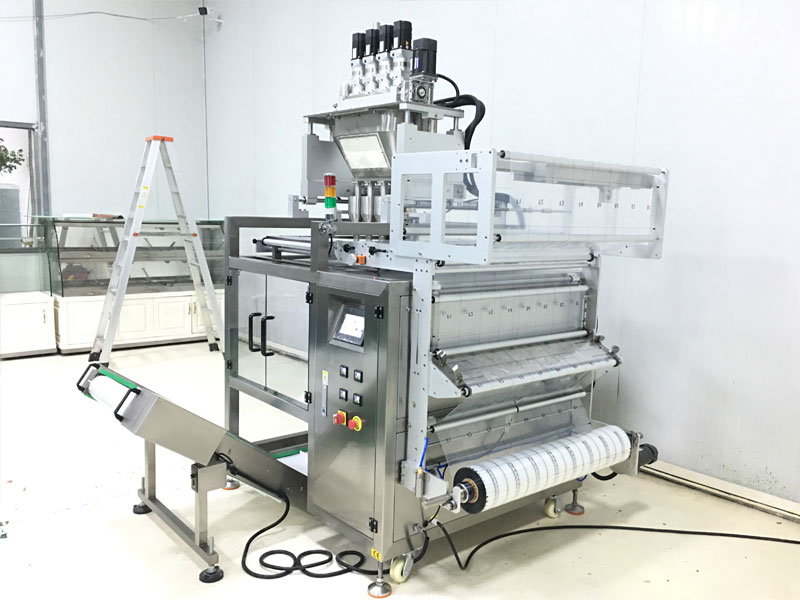

Machine side (1)

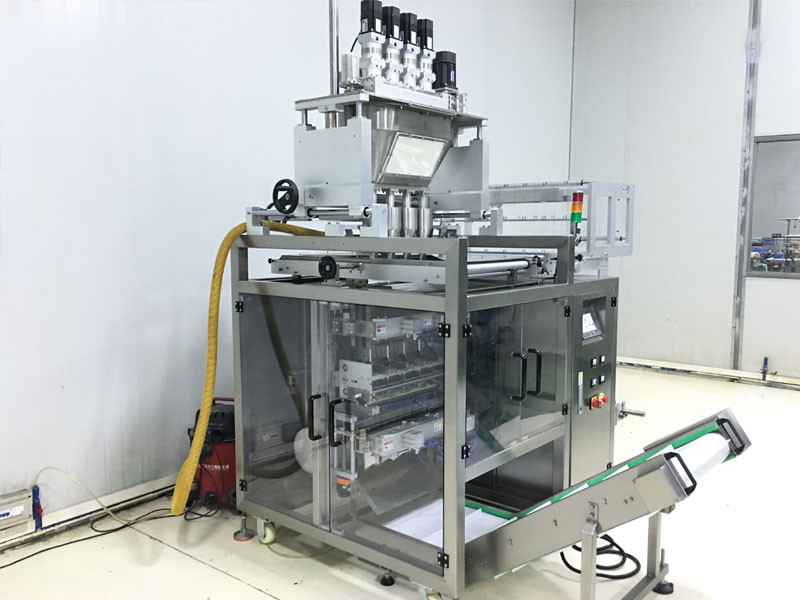

Machine side (2)
Machine side 1
