Traditional Chinese Medicine Powder Packaging Machine

Product model：CY300BF/CY600BF/CY900BF

　　Lanes number：2-16 lanes

　　Bag size：L：50-180mm W：20-105mm

　　Film width&thickness：Max.300-900mm,0.07--0.1mm

　　Capacity：Max.20-40cycle/min/lane

　　Measuring Method：long auger、short auger、short auger with cup

　　Power supply：50HZ/AC220V/380V/3.5-7.5kw

　　The traditional Chinese medicine powder packaging machine is a multi column packaging machine for powder and powder type materials. The machine consists of a screw feeding machine and a multi column packaging machine. Its workflow is to pour the materials into a storage hopper, transport the powder materials to the screw measuring device through the screw feeding machine, measure the materials, and then complete the packaging process through steps such as cutting, filling, sealing, cutting, and finished product output.

We can help you find the goods you want by phone

Consult immediately 186 7694 7539
Video presentation

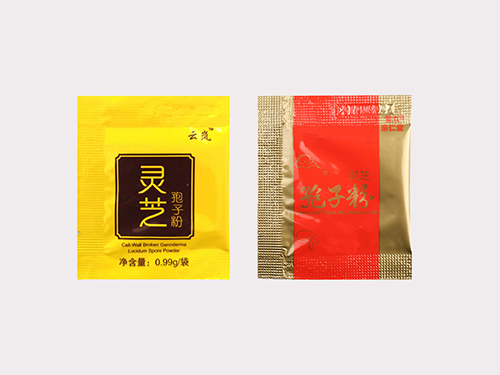

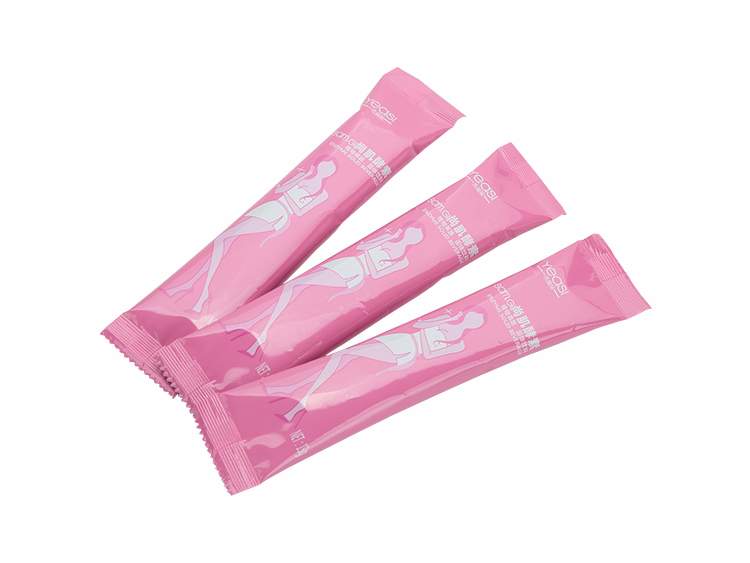

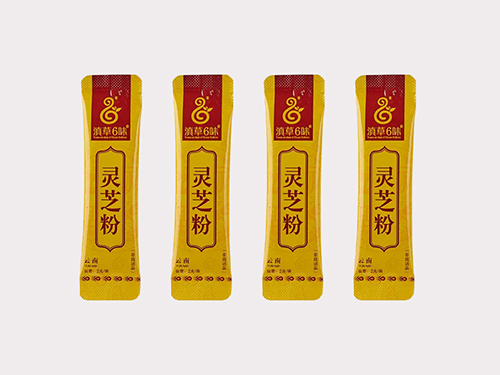

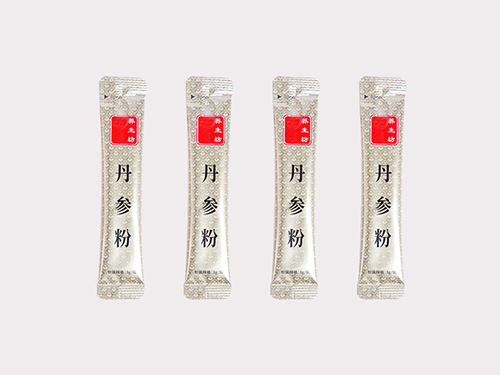

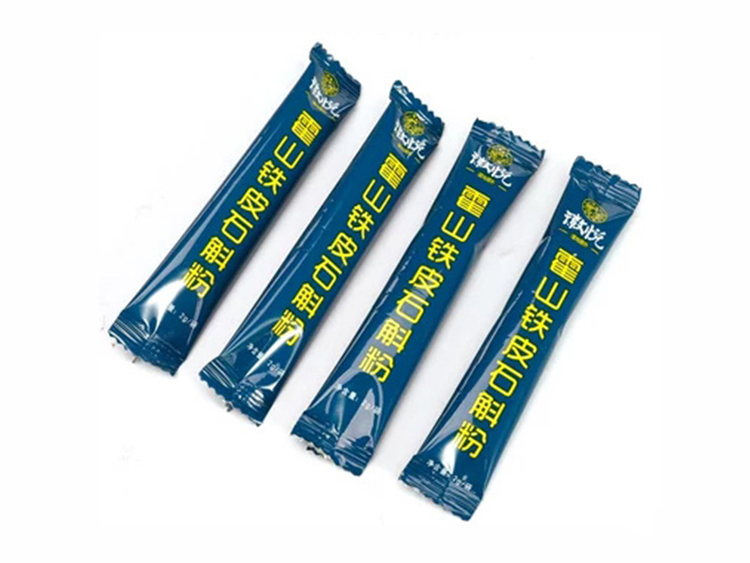

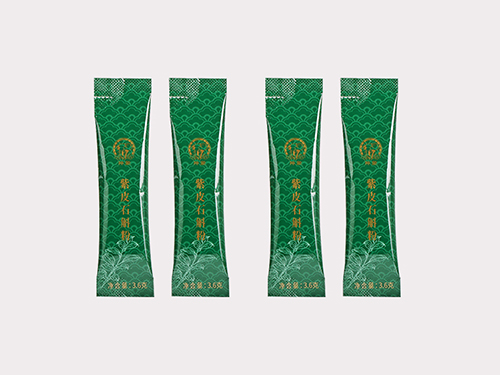

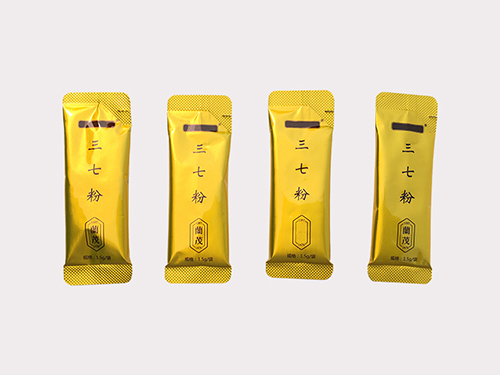

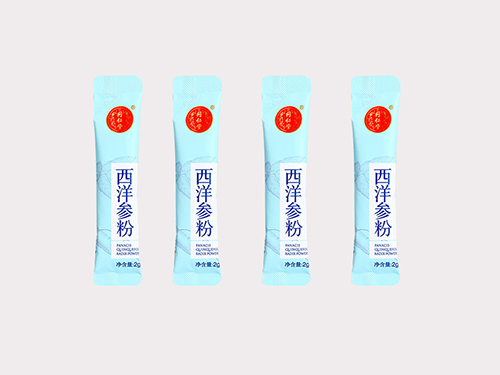

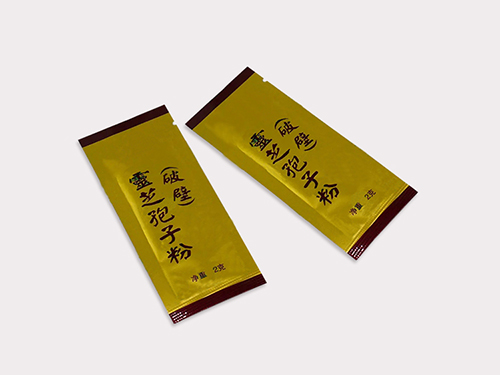

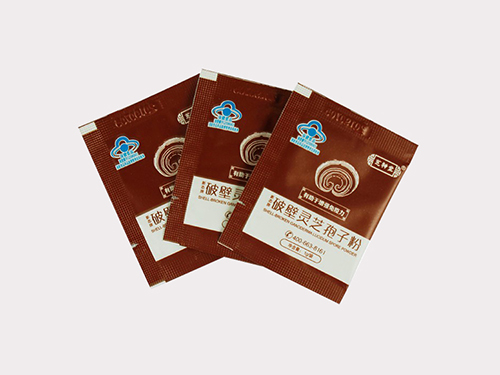

Packaging sample bag
Machine parameters
    Model CY300BF CY600BF CY900BF
    Lanes number 2-4 lanes 3-10 lanes 4-16 lane
Capacity 20--40 /Max.20-40cycle/min/lane
Bag size L：50-180mm  W：20-70mm L：50-180mm  W：20-95mm L：50-180mm  W：20-105mm
Film width&thickness Max.300mm,0.07--0.1mm Max.600mm,0.07--0.1mm Max.900mm,0.07--0.1mm
Measuring Method 1、long auger；2、short auger；3、short auger with cup
Sealing type Back sealing/stick bag Back sealing/stick bag Back sealing/stick bag
Cutting type 1、平口 Straight cutting；2、Zig zag cutting 3、Round cutting；4、Die-cut
Power supply 1N+PE/50HZ/AC220V/380V/3.5kw 1N+PE/50HZ/AC220V/380V/5.5kw 1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min
Dimension 1385*918*2005mm 1685*1300*2005mm 1700*1600*2500mm
Weight 400kg 600kg 950kg

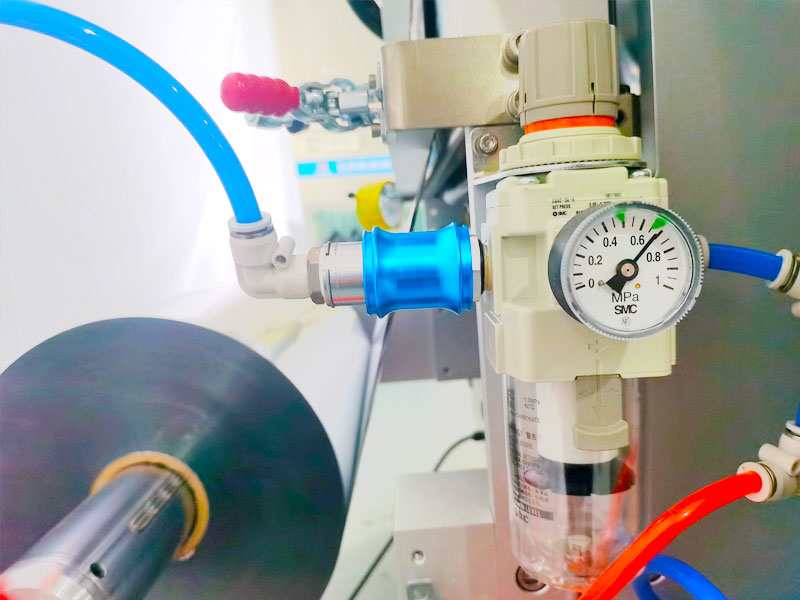

Detail drawing
